How to Clone a Windows 10 image on new tills

How to Clone a Windows 10 image on new tills

  1. Insert 2 USB provided ( Acronis & Windows image )
  2. When start image appears, press and hold Delete key
  3. Navigate to Boot tab and change Options 1-4
Option 1: UEFI:USB
Option 2: UEFI:USB
Option 3: USB
Option 4: PO: *********
  1. Save and exit tab, or press F10 to do so and the PC will restart

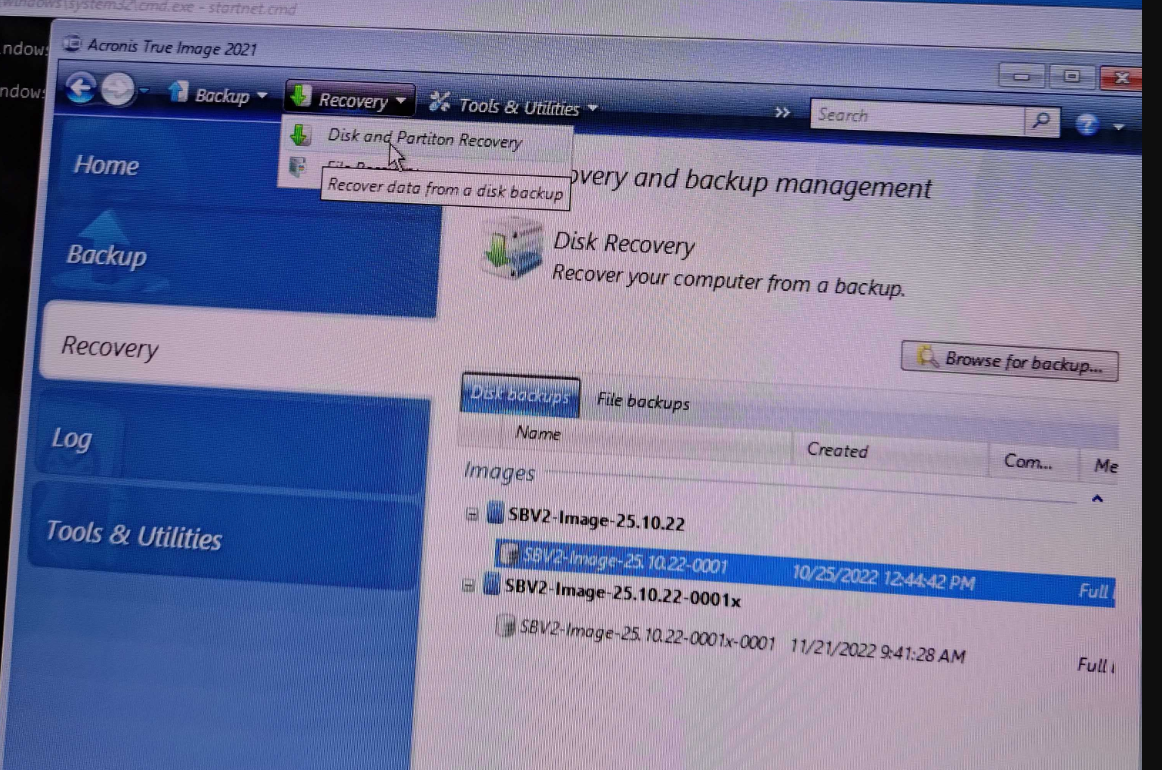

  2. On the next screen go to Recovery tab and click Disk and Partition Recovery

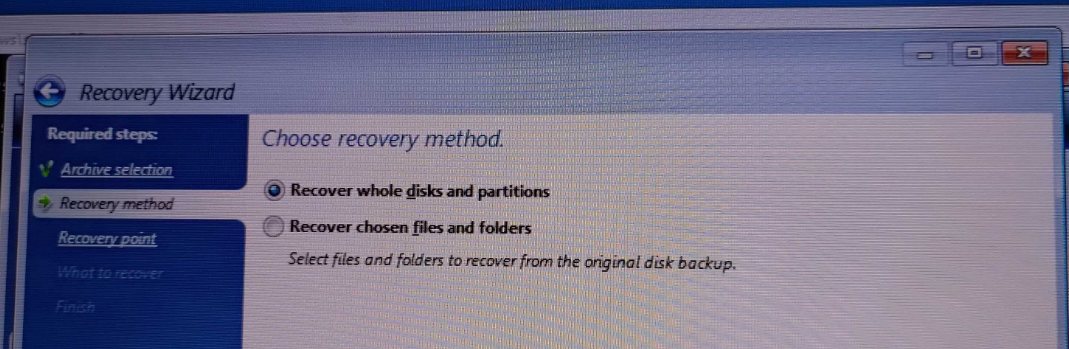

  1. Select Recover whole disks and partitions

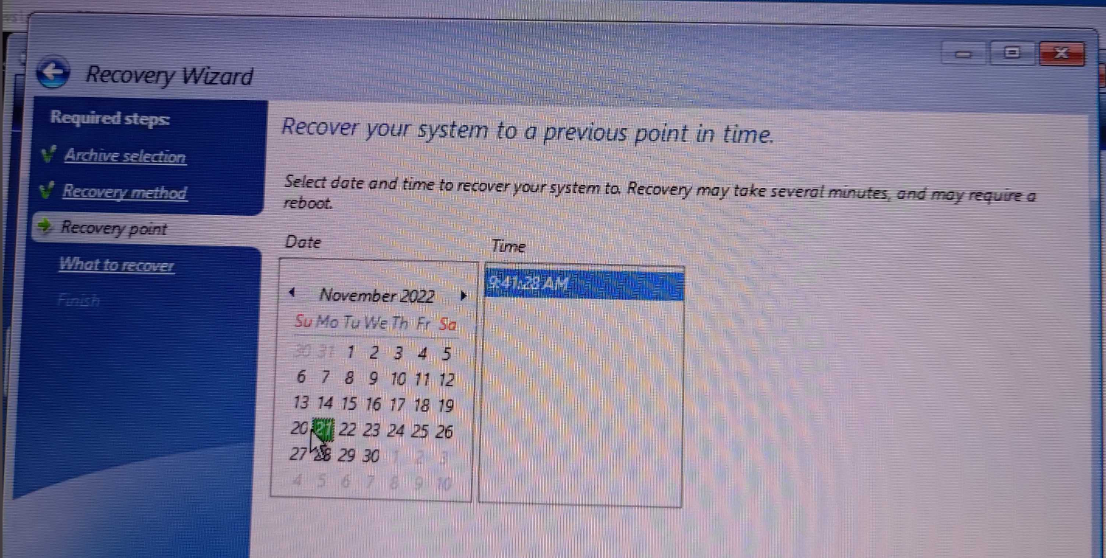

  1. Go back until there will be one green date and select it then select provided time

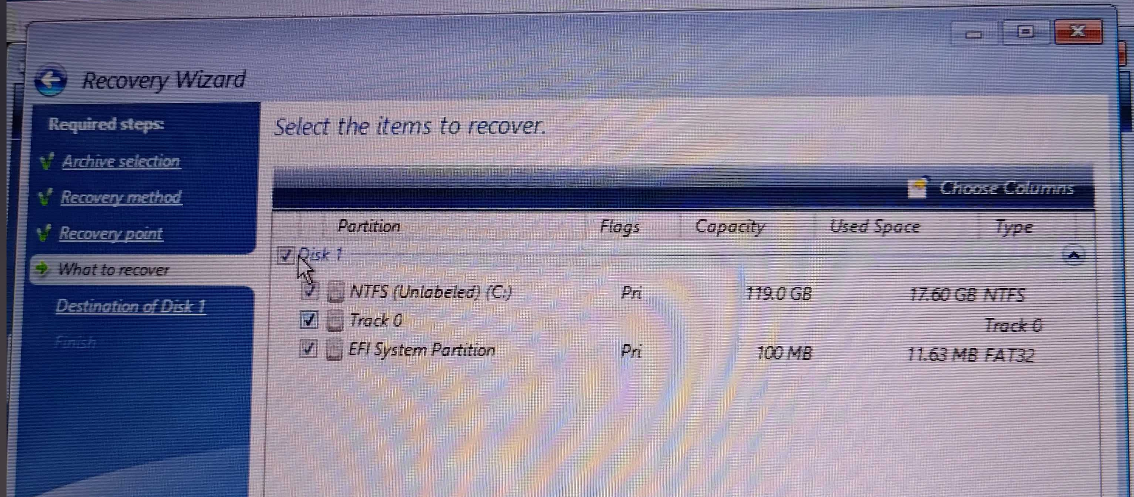

  1. Select Disk 1 to tick all partitions

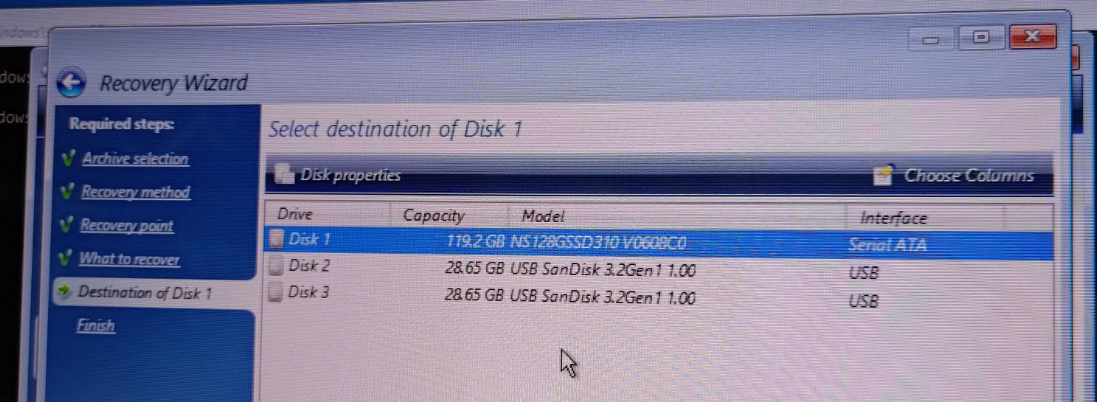

  1. Select the disk with the highest amount

  1. Click Next - OK - Proceed

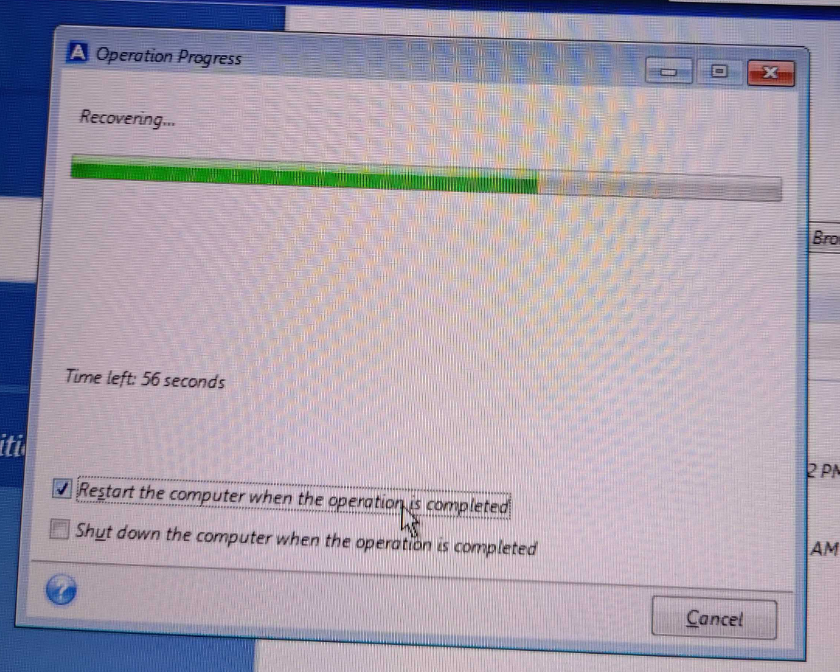

  2. Tick checkbox restart the computer when the operation is completed
